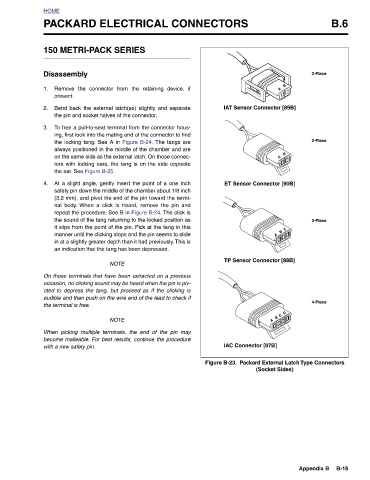

Page 478 - 2006 HARLEY FLSTCI SERVICE MANUAL

B.6 B-15

2-Place 2-Place 3-Place 4-Place Appendix B

IAT Sensor Connector [89B] ET Sensor Connector [90B] TP Sensor Connector [88B] IAC Connector [87B]
AB AB C AB D C AB Figure B-23. Packard External Latch Type Connectors (Socket Sides)

PACKARD ELECTRICAL CONNECTORS

150 METRI-PACK SERIES Remove the connector from the retaining device, if Bend back the external latch(es) slightly and separate the pin and socket halves of the connector. To free a pull-to-seat terminal from the connector hous- ing, first look into the mating end of the connector to find the locking tang. See A in Figure B-24. The tangs are always positioned in the middle of the chamber and are on the same side as the external latch. On those connec- tors with locking ears, the tang is on the side opposite the ear. See Figure B-25. At a slight angle, gently insert the point of a one inch safety pin down the middle of the chamber about 1/8

HOME Disassembly 1. present. 2. 3. 4. the terminal is free. with a new safety pin.
