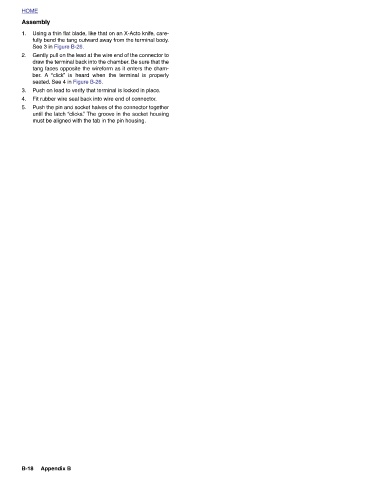

fully bend the tang outward away from the terminal body.
Using a thin flat blade, like that on an X-Acto knife, care-

See 3 in Figure B-26. Gently pull on the lead at the wire end of the connector to draw the terminal back into the chamber. Be sure that the tang faces opposite the wireform as it enters the cham- “click” is heard when the terminal is properly seated. See 4 in Figure B-26. Push on lead to verify that terminal is locked in place. Fit rubber wire seal back into wire end of connector. Push the pin and socket halves of the connector together until the latch “clicks.” The groove in the socket housing must be aligned with the tab in the pin housing. Appendix B

HOME Assembly 1. 2. ber. A 3. 4. 5. B-18
