P. 831
d0125x3x
L 4 2 L 6 L L 6 2 L 4 L

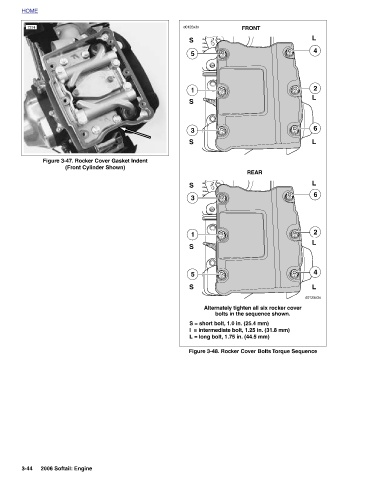

Alternately tighten all six rocker cover bolts in the sequence shown. Figure 3-48. Rocker Cover Bolts Torque Sequence
REAR
FRONT S = short bolt, 1.0 in. (25.4 mm) I = intermediate bolt, 1.25 in. (31.8 mm) L = long bolt, 1.75 in. (44.5 mm)
d0125x3x S 5 1 S 3 S S 3 1 S 5 S
Figure 3-47. Rocker Cover Gasket Indent (Front Cylinder Shown) 2006 Softail: Engine
HOME 7374 3-44
