3-69

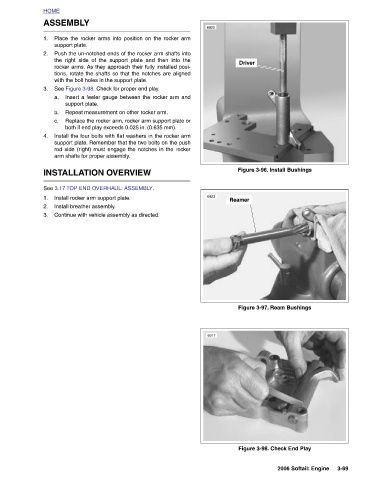

Figure 3-96. Install Bushings Figure 3-97. Ream Bushings Figure 3-98. Check End Play 2006 Softail: Engine

Driver Reamer

6922 6923 6917

rocker arms. As they approach their fully installed posi-
tions, rotate the shafts so that the notches are aligned
the right side of the support plate and then into the
Place the rocker arms into position on the rocker arm
Push the un-notched ends of the rocker arm shafts into

with the bolt holes in the support plate. See Figure 3-98. Check for proper end play. Insert a feeler gauge between the rocker arm and Repeat measurement on other rocker arm. Replace the rocker arm, rocker arm support plate or both if end play exceeds 0.025 in. (0.635 mm). Install the four bolts with flat washers in the rocker arm support plate. Remember that the two bolts on the push rod side (right) must engage the notches in the rocker arm shafts for proper assembly. INSTALLATION OVERVIEW See 3.17 TOP END OVERHAUL: ASSEMBLY. Install rocker arm support plate. Install breather assembly. Continue with vehicle assembly as direct

ASSEMBLY support plate. support plate.

HOME 1. 2. 3. a. b. c. 4. 1. 2. 3.
