3-67

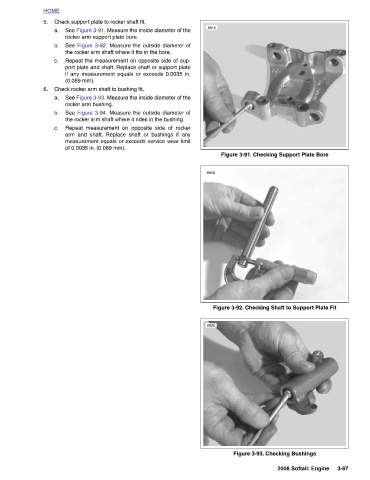

                                                                                                            Figure 3-92. Checking Shaft to Support Plate Fit
                                                          Figure 3-91. Checking Support Plate Bore
                                                                                                                                                            Figure 3-93. Checking Bushings  2006 Softail: Engine



















                6915                                           6918                                               6920













              Check support plate to rocker shaft fit. a. See Figure 3-91. Measure the inside diameter of the rocker arm support plate bore.  See Figure 3-92. Measure the outside diameter of the rocker arm shaft where it fits in the bore.  Repeat the measurement on opposite side of sup- port plate and shaft. Replace shaft or support plate if any measurement equals or exceeds 0.0035 in.  (0.089 mm). Check rocker arm shaft to bushing fit. a. See Figure 3-93. Measure the inside diameter of the  rocker arm bushing.  See Figure 3-94. Measure the outside diameter of the rocker arm shaft where it rides in the bushing.  Repeat measurement on opposite side of rocker arm and s
















          HOME  5.    b.   c.       6.      b.   c.
