P. 851

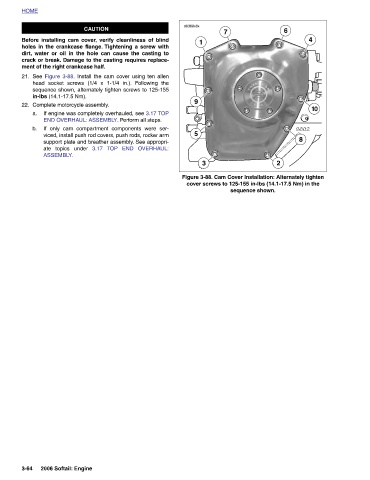

Figure 3-88. Cam Cover Installation: Alternately tighten
                                                                   cover screws to 125-155 in-lbs (14.1-17.5 Nm) in the
                                           10
                    4
                                                     8

                 6
                                                             2
                                                                     sequence shown.








                 7


                                                             3
                     1
               d0368x8x                 9          5




                                                        TOP END OVERHAUL:










                CAUTION Before installing cam cover, verify cleanliness of blind holes in the crankcase flange. Tightening a screw with dirt, water or oil in the hole can cause the casting to crack or break. Damage to the casting requires replace- See  Figure 3-88.  Install the cam cover using ten allen head socket screws (1/4 x 1-1/4 in.). Following the sequence shown, alternately tighten screws to 125-155  If engine was completely overhauled, see 3.17 TOP END OVERHAUL: ASSEMBLY. Perform all steps. If only cam compartment components were ser- viced, install push rod covers, push rods, rocker arm support plate and breather assembly. See appropri-  3.17
                             ment of the right crankcase half.  in-lbs (14.1-17.5 Nm).  Complete motorcycle assembly.  ate topics under   ASSEMBLY.              2006 Softail: Engine












          HOME                  21.      22.  a.   b.                                                                                                            3-64
