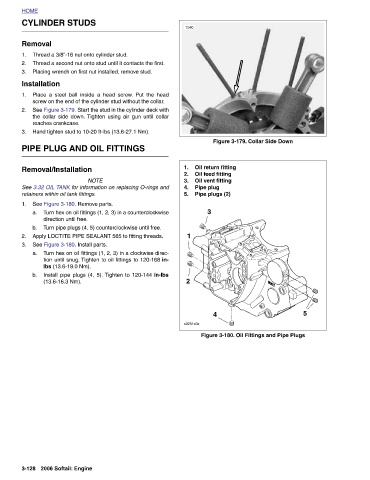

                                                     Figure 3-179. Collar Side Down                                  Figure 3-180. Oil Fittings and Pipe Plugs



















               7540                                           Oil return fitting  1.  Oil feed fitting  2.  Oil vent fitting  3.  Pipe plug  4.  Pipe plugs (2)  5.  3  1  2  4  s0251x3x


















              CYLINDER STUDS  Thread a 3/8”-16 nut onto cylinder stud.  Thread a second nut onto stud until it contacts the first.  Placing wrench on first nut installed, remove stud. Place a steel ball inside a head screw. Put the head screw on the end of the cylinder stud without the collar.  See Figure 3-179. Start the stud in the cylinder deck with the collar side down. Tighten using air gun until collar  reaches crankcase. Hand tighten stud to 10-20 ft-lbs (13.6-27.1 Nm). PIPE PLUG AND OIL FITTINGS  Removal/Installation  NOTE See 3.32 OIL TANK for information on replacing O-rings and retainers within oil tank fittings. See Figure 3-180. Remove parts. Turn hex on










          HOME       Removal  1.  2.  3.  Installation  1.  2.  3.        1.  a.   b.   2.  3.  a.   b.                                                          3-128
