5.2.12 Other Fail

Example: Intel
P35-S3G identified by:

01. Post code C1-07-C1
02. LFRAME impedance measure over high
03. PCB open
Signal Explanation:
The IT8718F supports the peripheral side of the LPC I/F. In addition to the required

signals (LAD3-0, LFRAME#, LRESET#, LCLK (LCLK is the same as PCICLK.)), the
IT8718F also supports LDRQ#, SERIRQ and PME#.
Because the LPC interface between SB and IO fails, it causes system lock up. Please

also check LAD0~3, -LFRAME, LPC33, LPCCLK48, IC75232 for repairing this issue.

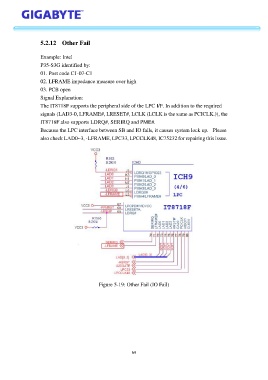

Figure 5-19: Other Fail (IO Fail)

69
