Example: Intel
945GCMX-S2 identified by:
01. Post code C3-07.
02. LPC33 no clock.
03. C230 10P fail and swap ok.
P35C-DS3R identified by:
01. Post code C3-07.
02. LAD2 impedance low.
03. SB bad and swap ok.
Signal Explanation:
LPC bus include LAD0~3, LFRME, LRESET#,
LDRQ#, and clock LPC33, LPCCLK48
Repairing Notes:
Sometimes this issue is caused by I/O or SB chip badly,
But impedance ok. Try swap I/O first for this issue repair if impedance ok.

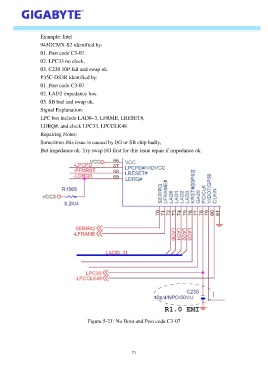

Figure 5-21: No Boot and Post code C3-07
