P. 90

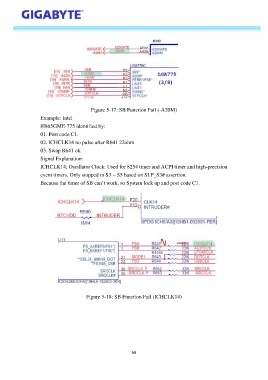

Figure 5-17: SB Function Fail (-A20M)
Example: Intel
8I865GME-775 identified by:
01. Post code C1.
02. ICHCLK14 no pulse after R641 22ohm
03. Swap R641 ok.
Signal Explanation:
ICHCLK14; Oscillator Clock: Used for 8254 timer and ACPI timer and high-precision
event timers. Only stopped in S3 ~ S5 based on SLP_S3# assertion.
Because the timer of SB can’t work, so System lock up and post code C1.
Figure 5-18: SB Function Fail (ICHCLK14)
68
