Page 100 - Barbara Merry - The Splicing Handbook
P. 100

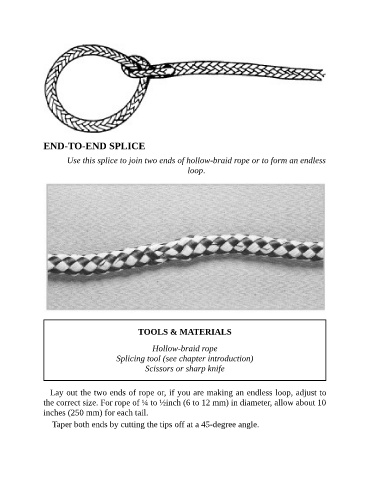

END-TO-END SPLICE

                       Use this splice to join two ends of hollow-braid rope or to form an endless
                                                               loop.
































                                               TOOLS & MATERIALS

                                                   Hollow-braid rope
                                        Splicing tool (see chapter introduction)
                                                 Scissors or sharp knife



                  Lay out the two ends of rope or, if you are making an endless loop, adjust to
               the correct size. For rope of ¼ to ½inch (6 to 12 mm) in diameter, allow about 10
               inches (250 mm) for each tail.

                  Taper both ends by cutting the tips off at a 45-degree angle.
