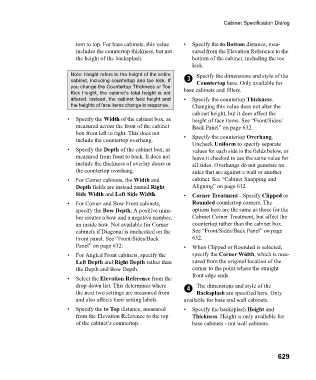

Cabinet Specification Dialog

tom to top. For base cabinets, this value • Specify the to Bottom distance, mea-
includes the countertop thickness, but not sured from the Elevation Reference to the
the height of the backsplash. bottom of the cabinet, including the toe
kick.
Note: Height refers to the height of the entire Specify the dimensions and style of the
cabinet, including countertop and toe kick. If 3 Countertop here. Only available for
you change the Countertop Thickness or Toe base cabinets and fillers.
Kick Height, the cabinet’s total height is not
altered. Instead, the cabinet face height and • Specify the countertop Thickness.
the heights of face items change in response. Changing this value does not alter the
cabinet height, but it does affect the
• Specify the Width of the cabinet box, as height of face items. See “Front/Sides/
measured across the front of the cabinet Back Panel” on page 632.
box from left to right. This does not
include the countertop overhang. • Specify the countertop Overhang.
Uncheck Uniform to specify separate
• Specify the Depth of the cabinet box, as values for each side in the fields below, or
measured from front to back. It does not leave it checked to use the same value for
include the thickness of overlay doors or all sides. Overhangs do not generate on
the countertop overhang. sides that are against a wall or another
• For Corner cabinets, the Width and cabinet. See “Cabinet Snapping and
Depth fields are instead named Right Aligning” on page 612.
Side Width and Left Side Width. • Corner Treatment - Specify Clipped or
• For Corner and Bow Front cabinets, Rounded countertop corners. The
specify the Bow Depth. A positive num- options here are the same as those for the
ber creates a bow and a negative number, Cabinet Corner Treatment, but affect the
an inside bow. Not available for Corner countertop rather than the cabinet box.
cabinets if Diagonal is unchecked on the See “Front/Sides/Back Panel” on page
Front panel. See “Front/Sides/Back 632.
Panel” on page 632. • When Clipped or Rounded is selected,
• For Angled Front cabinets, specify the specify the Corner Width, which is mea-
Left Depth and Right Depth rather than sured from the original location of the
the Depth and Bow Depth. corner to the point where the straight
front edge ends.
• Select the Elevation Reference from the
drop-down list. This determines where 4 The dimensions and style of the
the next two settings are measured from Backsplash are specified here. Only
and also affects their setting labels. available for base and wall cabinets.
• Specify the to Top distance, measured • Specify the backsplash Height and
from the Elevation Reference to the top Thickness. Height is only available for
of the cabinet’s countertop. base cabinets - not wall cabinets.
