Chief Architect X10 Reference Manual

• Select Clipped to create 45° angled point at which the clip or curve begins.
edges at the cabinet corners, then specify Only available if Clipped or Rounded is
the length of those angled edges. selected.
• Select None for cabinet corners that are A preview of the selected cabinet
neither clipped nor rounded. 4 displays on the right side of the panel.
• Specify the Corner Width value, as See “Dialog Preview Panes” on page 42.
measured from the original corner to the

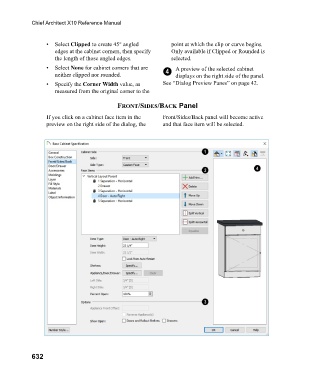

FRONT/SIDES/BACK Panel
If you click on a cabinet face item in the Front/Sides/Back panel will become active
preview on the right side of the dialog, the and that face item will be selected.

632
