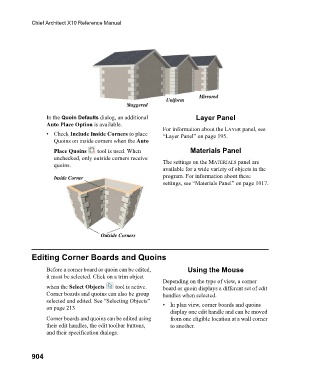

Chief Architect X10 Reference Manual

Mirrored
Uniform
Staggered
In the Quoin Defaults dialog, an additional Layer Panel
Auto Place Option is available.
For information about the LAYER panel, see
• Check Include Inside Corners to place “Layer Panel” on page 195.
Quoins on inside corners when the Auto
Place Quoins tool is used. When Materials Panel
unchecked, only outside corners receive
quoins. The settings on the MATERIALS panel are
available for a wide variety of objects in the
Inside Corner program. For information about these
settings, see “Materials Panel” on page 1017.

Outside Corners

Editing Corner Boards and Quoins

Before a corner board or quoin can be edited, Using the Mouse
it must be selected. Click on a trim object
Depending on the type of view, a corner
when the Select Objects tool is active. board or quoin displays a different set of edit
Corner boards and quoins can also be group handles when selected.
selected and edited. See “Selecting Objects”
on page 213 • In plan view, corner boards and quoins
display one edit handle and can be moved
Corner boards and quoins can be edited using from one eligible location at a wall corner
their edit handles, the edit toolbar buttons, to another.
and their specification dialogs.

904
