INSTALLATION AND STARTUP
Chapter 10 Initial Startup
Startup Procedure

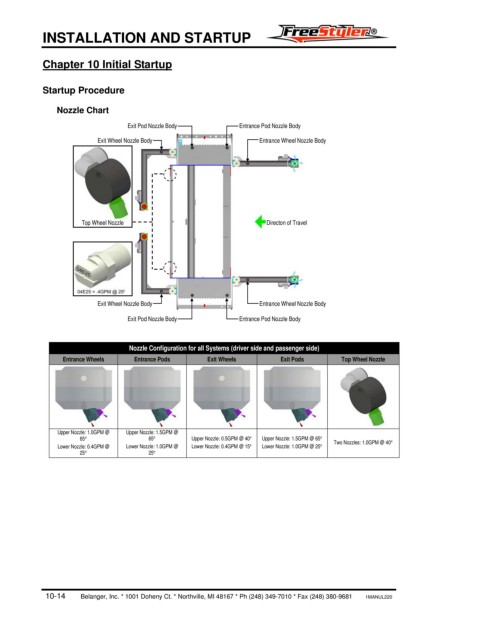

Nozzle Chart
Exit Pod Nozzle Body Entrance Pod Nozzle Body
Exit Wheel Nozzle Body Entrance Wheel Nozzle Body
Top Wheel Nozzle Directon of Travel
Exit Wheel Nozzle Body Entrance Wheel Nozzle Body
Exit Pod Nozzle Body Entrance Pod Nozzle Body
Nozzle Configuration for all Systems (driver side and passenger side)
Entrance Wheels Entrance Pods Exit Wheels Exit Pods Top Wheel Nozzle
Upper Nozzle: 1.0GPM @ Upper Nozzle: 1.5GPM @
65° 65° Upper Nozzle: 0.5GPM @ 40° Upper Nozzle: 1.5GPM @ 65°
Lower Nozzle: 0.4GPM @ Lower Nozzle: 1.0GPM @ Lower Nozzle: 0.4GPM @ 15° Lower Nozzle: 1.0GPM @ 25° Two Nozzles: 1.0GPM @ 40°
25° 25°
