HYDRO HYBRID™
Installation

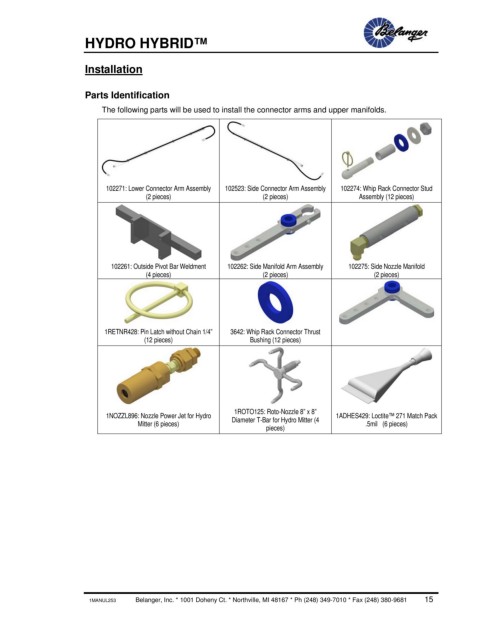

Parts Identification
The following parts will be used to install the connector arms and upper manifolds.
102271: Lower Connector Arm Assembly 102523: Side Connector Arm Assembly 102274: Whip Rack Connector Stud
(2 pieces) (2 pieces) Assembly (12 pieces)
102261: Outside Pivot Bar Weldment 102262: Side Manifold Arm Assembly 102275: Side Nozzle Manifold
(4 pieces) (2 pieces) (2 pieces)
1RETNR428: Pin Latch without Chain 1/4” 3642: Whip Rack Connector Thrust
(12 pieces) Bushing (12 pieces)
1ROTO125: Roto-Nozzle 8” x 8”
1NOZZL896: Nozzle Power Jet for Hydro Diameter T-Bar for Hydro Mitter (4 1ADHES429: Loctite™ 271 Match Pack
Mitter (6 pieces) .5mil (6 pieces)
pieces)
1MANUL253 Belanger, Inc. * 1001 Doheny Ct. * Northville, MI 48167 * Ph (248) 349-7010 * Fax (248) 380-9681 15
