HYDRO HYBRID™
Installation

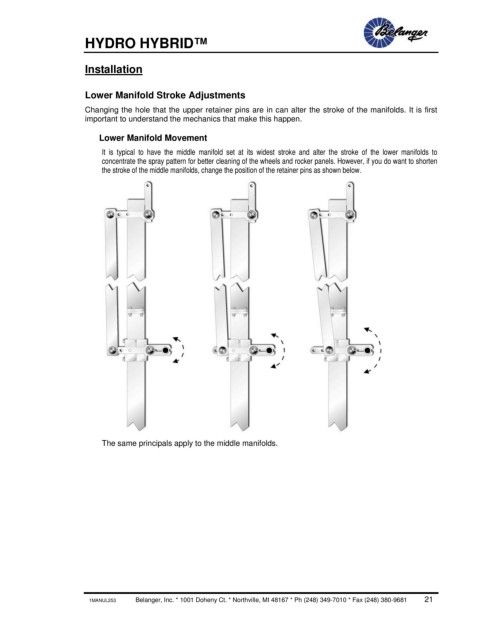

Lower Manifold Stroke Adjustments
Changing the hole that the upper retainer pins are in can alter the stroke of the manifolds. It is first
important to understand the mechanics that make this happen.
Lower Manifold Movement
It is typical to have the middle manifold set at its widest stroke and alter the stroke of the lower manifolds to
concentrate the spray pattern for better cleaning of the wheels and rocker panels. However, if you do want to shorten
the stroke of the middle manifolds, change the position of the retainer pins as shown below.
The same principals apply to the middle manifolds.
