HYDRO HYBRID™

Installation

Lower Manifold

Nozzle Manifolds

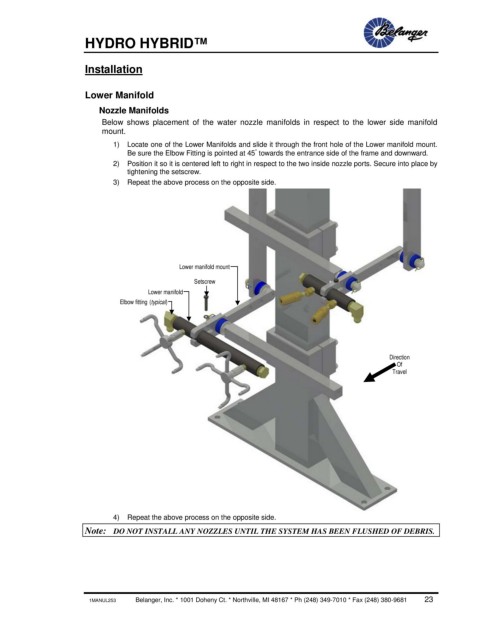

Below shows placement of the water nozzle manifolds in respect to the lower side manifold
mount.
1) Locate one of the Lower Manifolds and slide it through the front hole of the Lower manifold mount.
°
Be sure the Elbow Fitting is pointed at 45 towards the entrance side of the frame and downward.
2) Position it so it is centered left to right in respect to the two inside nozzle ports. Secure into place by
tightening the setscrew.
3) Repeat the above process on the opposite side.

Lower manifold mount
Setscrew
Lower manifold
Elbow fitting (typical)

Direction
Of
Travel

4) Repeat the above process on the opposite side.
Note: DO NOT INSTALL ANY NOZZLES UNTIL THE SYSTEM HAS BEEN FLUSHED OF DEBRIS.
