HYDRO HYBRID™

Installation

Middle Manifold

Nozzle Manifolds

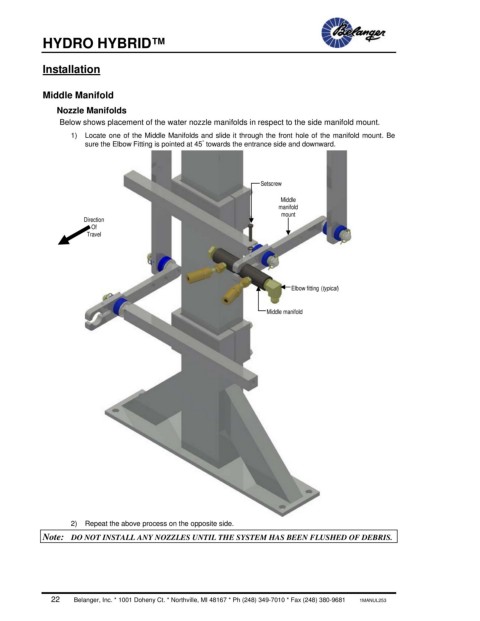

Below shows placement of the water nozzle manifolds in respect to the side manifold mount.
1) Locate one of the Middle Manifolds and slide it through the front hole of the manifold mount. Be
°
sure the Elbow Fitting is pointed at 45 towards the entrance side and downward.

Setscrew
Middle
manifold
mount
Direction
Of
Travel

Elbow fitting (typical)

Middle manifold

2) Repeat the above process on the opposite side.
Note: DO NOT INSTALL ANY NOZZLES UNTIL THE SYSTEM HAS BEEN FLUSHED OF DEBRIS.
