HYDRO HYBRID™
Installation
Cloth
4) Remove the retainer pin from the upper drive arm at the Pitman arm end and separate the upper
drive arm from the Pitman arm so that the rack hangs vertically.
5) Remove the three retainer pins from the lower drive arm and remove the arm.
6) Remove 1-1/8” outside rack connector bolt.

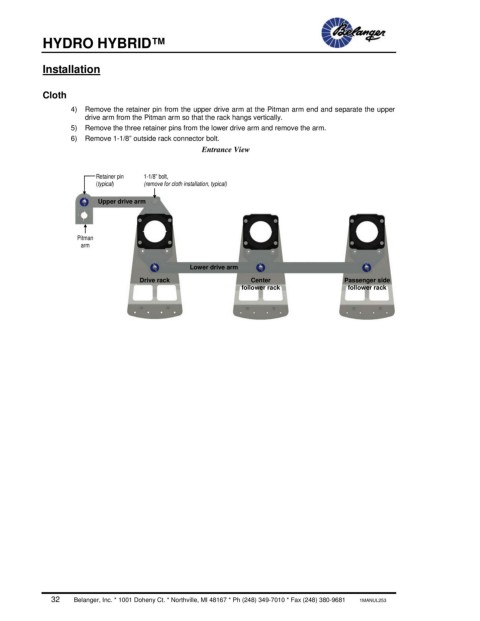

Entrance View
Retainer pin 1-1/8” bolt,
(typical) (remove for cloth installation, typical)
Upper drive arm
Pitman
arm
Lower drive arm
Drive rack Center Passenger side
follower rack follower rack
