Foam Bullet™


            Utility Connections

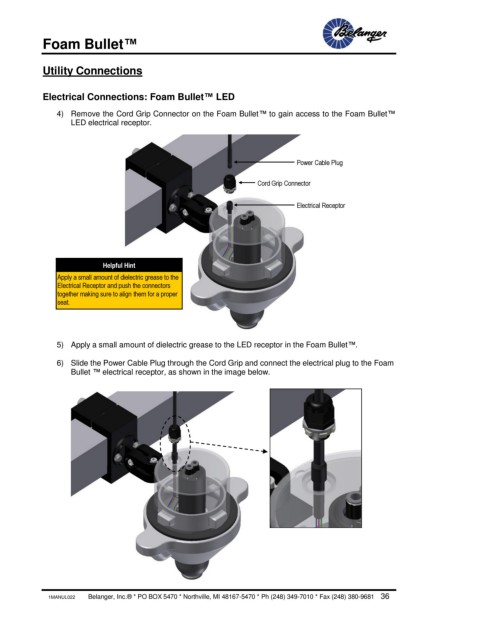

            Electrical Connections: Foam Bullet™ LED

               4)  Remove the Cord Grip Connector on the Foam Bullet™ to gain access to the Foam Bullet™
                   LED electrical receptor.




                                                                             Power Cable Plug

                                                                   Cord Grip Connector


                                                                             Electrical Receptor








                           Helpful Hint
                Apply a small amount of dielectric grease to the
                Electrical Receptor and push the connectors
                together making sure to align them for a proper
                seat.



               5)  Apply a small amount of dielectric grease to the LED receptor in the Foam Bullet™.

               6)  Slide the Power Cable Plug through the Cord Grip and connect the electrical plug to the Foam
                   Bullet ™ electrical receptor, as shown in the image below.
