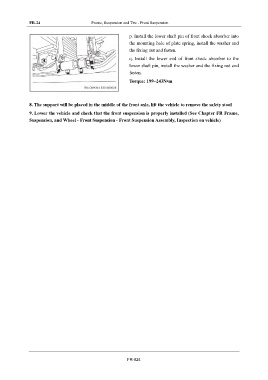

FR-24 Frame, Suspension and Tire - Front Suspension

p. Install the lower shaft pin of front shock absorber into
the mounting hole of plate spring, install the washer and
the fixing nut and fasten.

q. Install the lower end of front shock absorber to the
lower shaft pin, install the washer and the fixing nut and
fasten.
Torque: 199~243N•m

8. The support will be placed in the middle of the front axle, lift the vehicle to remove the safety stool
9. Lower the vehicle and check that the front suspension is properly installed (See Chapter FR Frame,
Suspension, and Wheel - Front Suspension - Front Suspension Assembly, Inspection on vehicle)

FR-024
