FR-22 Frame, Suspension and Tire - Front Suspension

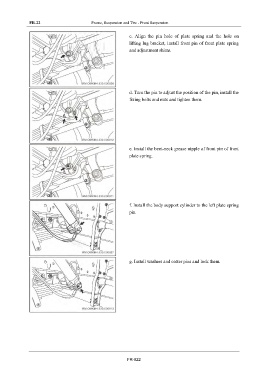

c. Align the pin hole of plate spring and the hole on
lifting lug bracket, install front pin of front plate spring
and adjustment shims.

d. Turn the pin to adjust the position of the pin, install the
fixing bolts and nuts and tighten them.

e. Install the bent-neck grease nipple of front pin of front
plate spring.

f. Install the body support cylinder to the left plate spring
pin.

g. Install washers and cotter pins and lock them.

FR-022
