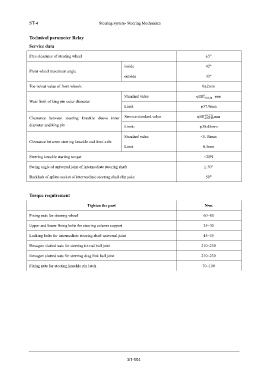

Page 1072 - Foton Workshop Manual - Auman EST-M

ST-4 Steering system- Steering Mechanism

Technical parameter Relay
Service data

Free clearance of steering wheel ±5°

inside 42°
Front wheel maximum angle
outside 33°

Toe-in/out value of front wheels 0±2mm
Standard value φ38 . mm
Wear limit of king pin outer diameter
Limit φ37.9mm

Clearance between steering knuckle sleeve inner Service standard value φ38 . mm
.
diameter and king pin Limit: φ38.45mm

Standard value <0.10mm
Clearance between steering knuckle and front axle
Limit 0.3mm

Steering knuckle starting torque <20N

Swing angle of universal joint of intermediate steering shaft ≥ 30°

Backlash of spline socket of intermediate steering shaft slip yoke 50"

Torque requirement

Tighten the part N•m

Fixing nuts for steering wheel 60~80

Upper and lower fixing bolts for steering column support 25~30

Locking bolts for intermediate steering shaft universal joint 45~55

Hexagon slotted nuts for steering tie rod ball joint 210~230
Hexagon slotted nuts for steering drag link ball joint 210~230

Fixing nuts for steering knuckle pin latch 70~100

ST-004
