ST-6 Steering system- Steering Mechanism

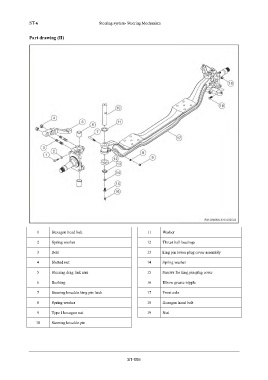

Part drawing (II)

1 Hexagon head bolt 11 Washer

2 Spring washer 12 Thrust ball bearings

3 Bolt 13 king pin lower plug cover assembly
4 Slotted nut 14 Spring washer

5 Steering drag link arm 15 Screws for king pin plug cover

6 Bushing 16 Elbow grease nipple

7 Steering knuckle king pin latch 17 Front axle
8 Spring washer 18 Hexagon head bolt

9 Type I hexagon nut 19 Nut

10 Steering knuckle pin
