Steering system- Steering Mechanism ST-5

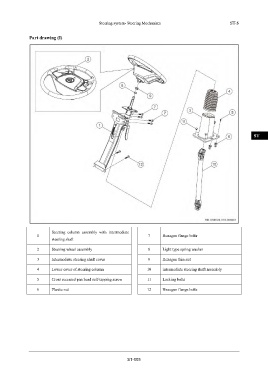

Part drawing (I) IN
DI
EG
TR
AX
FR
ST
BR
BW
EL
Steering column assembly with intermediate
1 7 Hexagon flange bolts
steering shaft
2 Steering wheel assembly 8 Light type spring washer
3 Intermediate steering shaft cover 9 Hexagon thin nut
4 Lower cover of steering column 10 intermediate steering shaft assembly
5 Cross recessed pan head self-tapping screw 11 Locking bolts
6 Plastic nut 12 Hexagon flange bolts
ST-005
