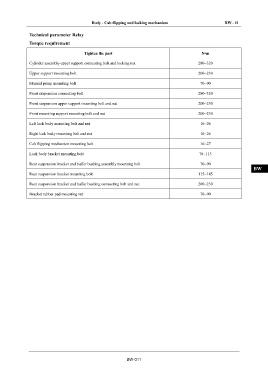

Body - Cab flipping and locking mechanism BW - 11
Technical parameter Relay IN
Torque requirement
Tighten the part N•m DI
Cylinder assembly upper support connecting bolt and locking nut 280~320
EG
Upper support mounting bolt 200~230
Manual pump mounting bolt 70~90
TR
Front suspension connecting bolt 280~320
AX
Front suspension upper support mounting bolt and nut 200~230
Front mounting support mounting bolt and nut 200~230
FR
Left lock body mounting bolt and nut 16~26
Right lock body mounting bolt and nut 16~26
ST
Cab flipping mechanism mounting bolt 16~27
BR
Lock body bracket mounting bolt 78~115
Rear suspension bracket and buffer bushing assembly mounting bolt 70~90
BW
Rear suspension bracket mounting bolt 115~145
Rear suspension bracket and buffer bushing connecting bolt and nut 200~230 EL
Bracket rubber pad mounting nut 70~90
BW-011
