BW - 14 Body - Cab flipping and locking mechanism

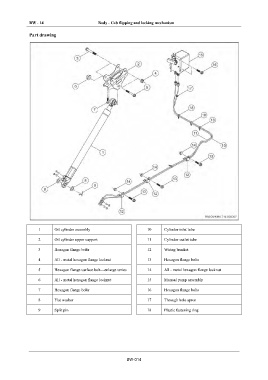

Part drawing

1 Oil cylinder assembly 10 Cylinder inlet tube

2 Oil cylinder upper support 11 Cylinder outlet tube

3 Hexagon flange bolts 12 Wiring bracket

4 All - metal hexagon flange locknut 13 Hexagon flange bolts
5 Hexagon flange surface bolt—enlarge series 14 All - metal hexagon flange locknut

6 All - metal hexagon flange locknut 15 Manual pump assembly

7 Hexagon flange bolts 16 Hexagon flange bolts

8 Flat washer 17 Through hole apron

9 Split pin 18 Plastic fastening ring

BW-014
