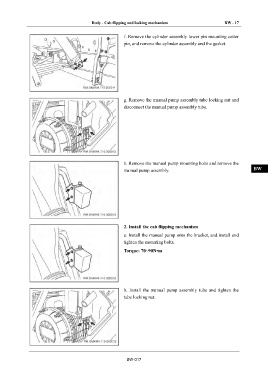

Body - Cab flipping and locking mechanism BW - 17
f. Remove the cylinder assembly lower pin mounting cotter IN
pin, and remove the cylinder assembly and the gasket.
DI
EG
TR
g. Remove the manual pump assembly tube locking nut and
AX
disconnect the manual pump assembly tube.
FR
ST
BR
h. Remove the manual pump mounting bolts and remove the
manual pump assembly. BW
EL
2. Install the cab flipping mechanism
a. Install the manual pump onto the bracket, and install and
tighten the mounting bolts.
Torque: 70~90N•m
b. Install the manual pump assembly tube and tighten the
tube locking nut.
BW-017
