BW - 20 Body - Cab flipping and locking mechanism

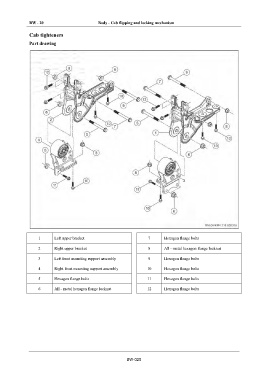

Cab tighteners

Part drawing

1 Left upper bracket 7 Hexagon flange bolts
2 Right upper bracket 8 All - metal hexagon flange locknut

3 Left front mounting support assembly 9 Hexagon flange bolts

4 Right front mounting support assembly 10 Hexagon flange bolts

5 Hexagon flange bolts 11 Hexagon flange bolts

6 All - metal hexagon flange locknut 12 Hexagon flange bolts

BW-020
