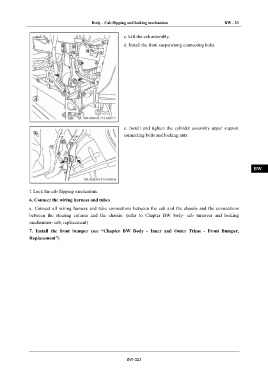

Page 1261 - Foton Workshop Manual - Auman EST-M

Body - Cab flipping and locking mechanism BW - 23

c. Lift the cab assembly. IN
d. Install the front suspensiong connecting bolts.
DI

EG

TR

AX

FR

e. Install and tighten the cylinder assembly upper support
connecting bolts and locking nuts. ST

BR

BW

EL
f. Lock the cab flipping mechanism.

6. Connect the wiring harness and tubes

a. Connect all wiring harness and tube connections between the cab and the chassis and the connections

between the steering column and the chassis. (refer to Chapter BW body- cab turnover and locking

mechanism– cab, replacement)

7. Install the front bumper (see “Chapter BW Body - Inner and Outer Trims - Front Bumper,

Replacement”)

BW-023
