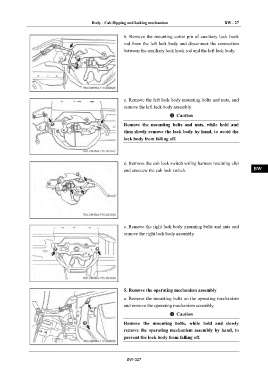

Body - Cab flipping and locking mechanism BW - 27

b. Remove the mounting cotter pin of auxiliary lock hook IN
rod from the left lock body and disconnect the connection
between the anxiliary lock hook rod and the left lock body. DI

EG

TR

c. Remove the left lock body mounting bolts and nuts, and
AX
remove the left lock body assembly.

Caution
FR
Remove the mounting bolts and nuts, while hold and

then slowly remove the lock body by hand, to avoid the
ST
lock body from falling off.

BR

d. Remove the cab lock switch wiring harness retaining clip
and unscrew the cab lock switch. BW

EL

e. Remove the right lock body mounting bolts and nuts and
remove the right lock body assembly.

5. Remove the operating mechanism assembly

a. Remove the mounting bolts on the operating mechanism

and remove the operating mechanism assembly.

Caution

Remove the mounting bolts, while hold and slowly

remove the operating mechanism assembly by hand, to

prevent the lock body from falling off.

BW-027
