Page 1270 - Foton Workshop Manual - Auman EST-M

BW - 32 Body - Cab flipping and locking mechanism

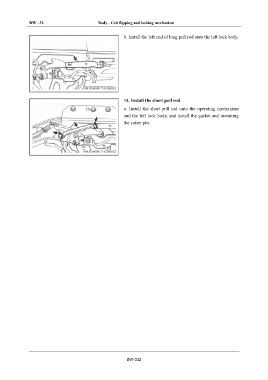

b. Install the left end of long pull rod onto the left lock body.

14. Install the short pull rod

a. Install the short pull rod onto the operating mechanism
and the left lock body, and install the gasket and mounting
the cotter pin.

BW-032
