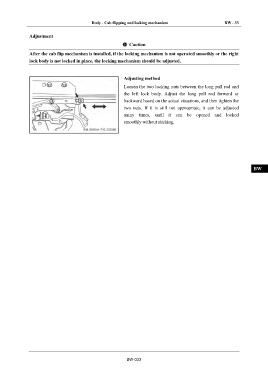

Body - Cab flipping and locking mechanism BW - 33
Adjustment IN
Caution
After the cab flip mechanism is installed, if the locking mechanism is not operated smoothly or the right DI
lock body is not locked in place, the locking mechanism should be adjusted.
EG
Adjusting method
Loosen the two locking nuts between the long pull rod and TR
the left lock body. Adjust the long pull rod forward or
backward based on the actual situations, and then tighten the AX
two nuts. If it is still not appropriate, it can be adjusted
many times, until it can be opened and locked
FR
smoothly without sticking.
ST
BR
BW
EL
BW-033
