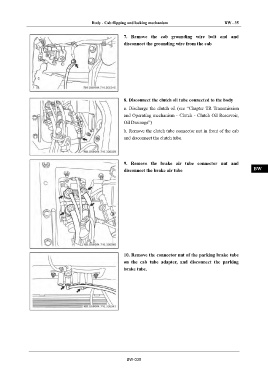

Body - Cab flipping and locking mechanism BW - 35

7. Remove the cab grounding wire bolt and and IN
disconnect the grounding wire from the cab
DI

EG

TR

8. Disconnect the clutch oil tube connected to the body
AX
a. Discharge the clutch oil (see “Chapter TR Transmission
and Operating mechanism - Clutch - Clutch Oil Reservoir,
FR
Oil Drainage”)
b. Remove the clutch tube connector nut in front of the cab
ST
and disconnect the clutch tube.

BR

9. Remove the brake air tube connector nut and
BW
disconnect the brake air tube

EL

10. Remove the connector nut of the parking brake tube
on the cab tube adapter, and disconnect the parking
brake tube.

BW-035
