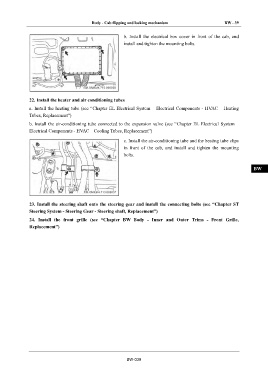

Body - Cab flipping and locking mechanism BW - 39

b. Install the electrical box cover in front of the cab, and IN
install and tighten the mounting bolts.
DI

EG

TR

22. Install the heater and air conditioning tubes
AX
a. Install the heating tube (see “Chapter EL Electrical System – Electrical Components - HVAC – Heating

Tubes, Replacement”)
FR
b. Install the air-conditioning tube connected to the expansion valve (see “Chapter EL Electrical System –

Electrical Components - HVAC – Cooling Tubes, Replacement”)
ST
c. Install the air-conditioning tube and the heating tube clips

in front of the cab, and install and tighten the mounting
BR
bolts.

BW

EL

23. Install the steering shaft onto the steering gear and install the connecting bolts (see “Chapter ST
Steering System - Steering Gear - Steering shaft, Replacement”)
24. Install the front grille (see “Chapter BW Body - Inner and Outer Trims - Front Grille,
Replacement”)

BW-039
