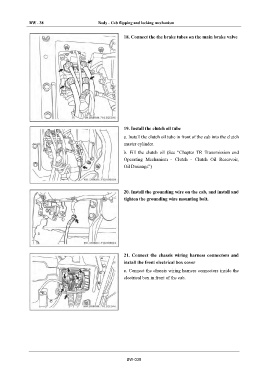

BW - 38 Body - Cab flipping and locking mechanism

18. Connect the the brake tubes on the main brake valve

19. Install the clutch oil tube
a. Install the clutch oil tube in front of the cab into the clutch
master cylinder.

b. Fill the clutch oil (See "Chapter TR Transmission and
Operating Mechanism - Clutch - Clutch Oil Reservoir,
Oil Drainage”)

20. Install the grounding wire on the cab, and install and
tighten the grounding wire mounting bolt.

21. Connect the chassis wiring harness connectors and
install the front electrical box cover
a. Connect the chassis wiring harness connectors inside the
electrical box in front of the cab.

BW-038
