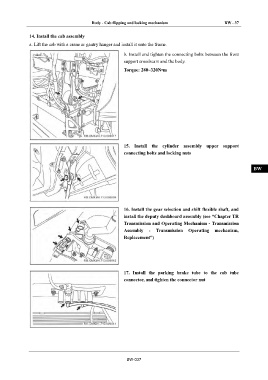

Body - Cab flipping and locking mechanism BW - 37

14. Install the cab assembly IN
a. Lift the cab with a crane or gantry hanger and install it onto the frame.
DI
b. Install and tighten the connecting bolts between the front
support crossbeam and the body.

Torque: 280~320N•m EG

TR

AX

FR

ST

15. Install the cylinder assembly upper support
connecting bolts and locking nuts BR

BW

EL

16. Install the gear selection and shift flexible shaft, and
install the deputy dashboard assembly (see “Chapter TR

Transmission and Operating Mechanism - Transmission

Assembly - Transmission Operating mechanism,

Replacement”)

17. Install the parking brake tube to the cab tube

connector, and tighten the connector nut

BW-037
