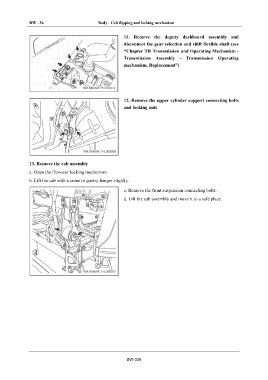

BW - 36 Body - Cab flipping and locking mechanism

11. Remove the deputy dashboard assembly and
disconnect the gear selection and shift flexible shaft (see
“Chapter TR Transmission and Operating Mechanism -
Transmission Assembly - Transmission Operating
mechanism, Replacement”)

12. Remove the upper cylinder support connecting bolts
and locking nuts

13. Remove the cab assembly
a. Open the flip-over locking mechanism

b. Lift the cab with a crane or gantry hanger slightly.
c. Remove the front suspension connecting bolts.

d. Lift the cab assembly and move it to a safe place.

BW-036
