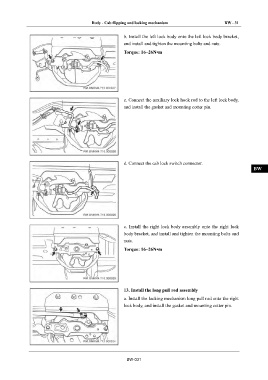

Body - Cab flipping and locking mechanism BW - 31

b. Install the left lock body onto the left lock body bracket, IN
and install and tighten the mounting bolts and nuts.
Torque: 16~26N•m DI

EG

TR

c. Connect the auxiliary lock hook rod to the left lock body,
AX
and install the gasket and mounting cotter pin.

FR

ST

BR

d. Connect the cab lock switch connector.
BW

EL

e. Install the right lock body assembly onto the right lock
body bracket, and install and tighten the mounting bolts and
nuts.

Torque: 16~26N•m

13. Install the long pull rod assembly

a. Install the locking mechanism long pull rod onto the right

lock body, and install the gasket and mounting cotter pin.

BW-031
