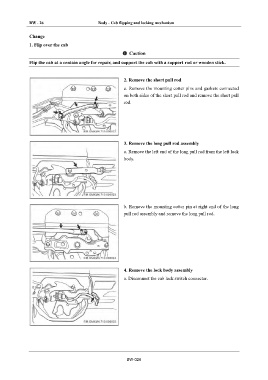

BW - 26 Body - Cab flipping and locking mechanism

Change
1. Flip over the cab
Caution

Flip the cab at a centain angle for repair, and support the cab with a support rod or wooden stick.

2. Remove the short pull rod
a. Remove the mounting cotter pins and gaskets connected
on both sides of the short pull rod and remove the short pull
rod.

3. Remove the long pull rod assembly

a. Remove the left end of the long pull rod from the left lock
body.

b. Remove the mounting cotter pin at right end of the long
pull rod assembly and remove the long pull rod.

4. Remove the lock body assembly

a. Disconnect the cab lock switch connector.

BW-026
