Body - Cab flipping and locking mechanism BW - 25

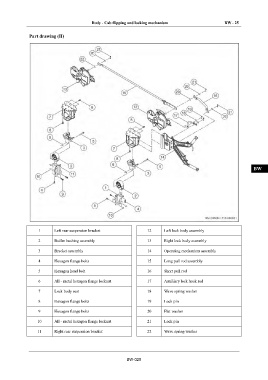

Part drawing (II) IN
DI
EG
TR
AX
FR
ST
BR
BW
EL
1 Left rear suspension bracket 12 Left lock body assembly
2 Buffer bushing assembly 13 Right lock body assembly
3 Bracket assembly 14 Operating mechanism assembly
4 Hexagon flange bolts 15 Long pull rod assembly
5 Hexagon head bolt 16 Short pull rod
6 All - metal hexagon flange locknut 17 Auxiliary lock hook rod
7 Lock body seat 18 Wave spring washer
8 Hexagon flange bolts 19 Lock pin
9 Hexagon flange bolts 20 Flat washer
10 All - metal hexagon flange locknut 21 Lock pin
11 Right rear suspension bracket 22 Wave spring washer
