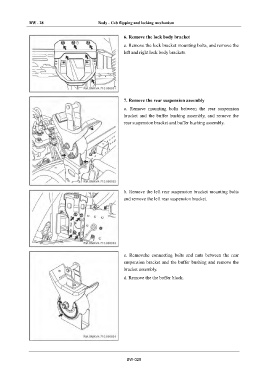

BW - 28 Body - Cab flipping and locking mechanism

6. Remove the lock body bracket
a. Remove the lock bracket mounting bolts, and remove the
left and right lock body brackets.

7. Remove the rear suspension assembly

a. Remove mounting bolts between the rear suspension
bracket and the buffer bushing assembly, and remove the
rear suspension bracket and buffer bushing assembly.

b. Remove the left rear suspension bracket mounting bolts
and remove the left rear suspension bracket.

c. Removehe connecting bolts and nuts between the rear
suspension bracket and the buffer bushing and remove the
bracket assembly.
d. Remove the the buffer block.

BW-028
