BW - 24 Body - Cab flipping and locking mechanism

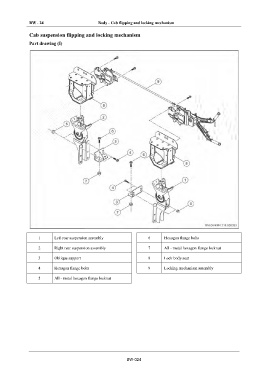

Cab suspension flipping and locking mechanism

Part drawing (I)

1 Left rear suspension assembly 6 Hexagon flange bolts
2 Right rear suspension assembly 7 All - metal hexagon flange locknut

3 Oblique support 8 Lock body seat

4 Hexagon flange bolts 9 Locking mechanism assembly

5 All - metal hexagon flange locknut

BW-024
