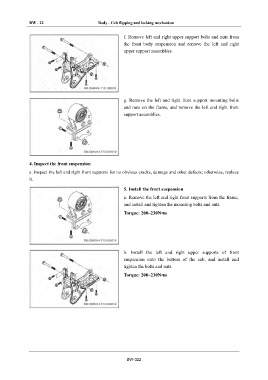

BW - 22 Body - Cab flipping and locking mechanism

f. Remove left and right upper support bolts and nuts from
the front body suspension and remove the left and right
upper support assemblies.

g. Remove the left and right front support mounting bolts
and nuts on the frame, and remove the left and right front
support assemblies.

4. Inspect the front suspension
a. Inspect the left and right front supports for no obvious cracks, damage and other defects; otherwise, replace
it.

5. Install the front suspension
a. Remove the left and right front supports from the frame,
and install and tighten the mounting bolts and nuts.
Torque: 200~230N•m

b. Install the left and right upper supports of front
suspension onto the bottom of the cab, and install and
tighten the bolts and nuts.

Torque: 200~230N•m

BW-022
