BW - 18 Body - Cab flipping and locking mechanism

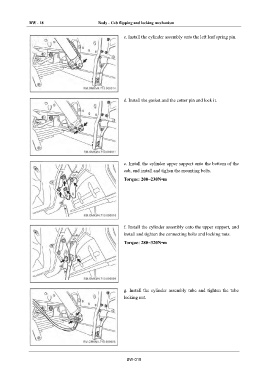

c. Install the cylinder assembly onto the left leaf spring pin.

d. Install the gasket and the cotter pin and lock it.

e. Install the cylinder upper support onto the bottom of the
cab, and install and tighen the mounting bolts.
Torque: 200~230N•m

f. Install the cylinder assembly onto the upper support, and
install and tighten the connecting bolts and locking nuts.

Torque: 280~320N•m

g. Install the cylinder assembly tube and tighten the tube
locking nut.

BW-018
