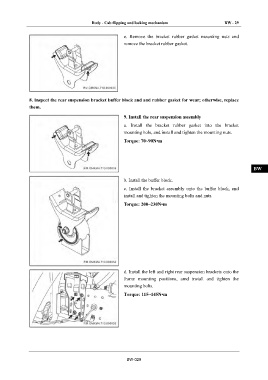

Body - Cab flipping and locking mechanism BW - 29

e. Remove the bracket rubber gasket mounting nuts and IN
remove the bracket rubber gasket.
DI

EG

TR

8. Inspect the rear suspension bracket buffer block and and rubber gasket for wear; otherwise, replace
AX
them.

9. Install the rear suspension assembly
FR
a. Install the bracket rubber gasket into the bracket
mounting hole, and install and tighten the mounting nuts.
ST
Torque: 70~90N•m

BR

BW

b. Install the buffer block.
EL
c. Install the bracket assembly onto the buffer block, and

install and tighten the mounting bolts and nuts.

Torque: 200~230N•m

d. Install the left and right rear suspension brackets onto the

frame mounting positions, amd install and tighten the
mounting bolts.
Torque: 115~145N•m

BW-029
