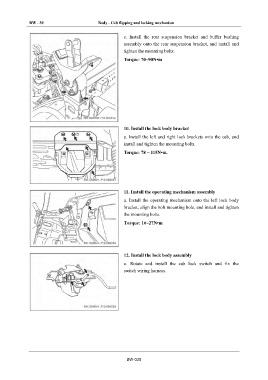

BW - 30 Body - Cab flipping and locking mechanism

e. Install the rear suspension bracket and buffer bushing
assembly onto the rear suspension bracket, and install and
tighten the mounting bolts.
Torque: 70~90N•m

10. Install the lock body bracket
a. Install the left and right lock brackets onto the cab, and
install and tighten the mounting bolts.

Torque: 78 ~ 115N•m.

11. Install the operating mechanism assembly
a. Install the operating mechanism onto the left lock body
bracket, align the bolt mounting hole, and install and tighten
the mounting bolts.
Torque: 16~27N•m

12. Install the lock body assembly
a. Rotate and install the cab lock switch and fix the
switch wiring harness.

BW-030
