Body - Windshield, window glass, rearview mirror BW - 45

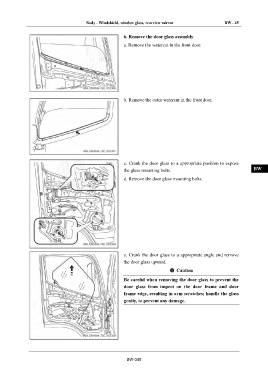

6. Remove the door glass assembly IN
a. Remove the watercut in the front door.
DI

EG

TR

b. Remove the outer watercut in the front door.
AX

FR

ST

BR

c. Crank the door glass to a appropriate position to expose
the glass mounting bolts. BW

d. Remove the door glass mounting bolts.
EL

e. Crank the door glass to a appropriate angle and remove
the door glass upward.

Caution

Be careful when removing the door glass to prevent the
door glass from impect on the door frame and door
frame edge, resulting in arm scratches; handle the glass
gently, to prevent any damage.

BW-045
