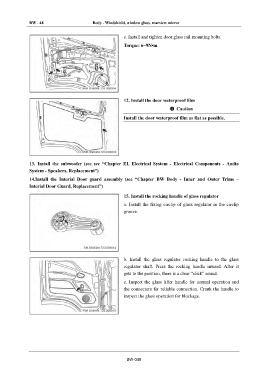

BW - 48 Body - Windshield, window glass, rearview mirror

c. Install and tighten door glass rail mounting bolts.
Torque: 6~9N•m

12. Install the door waterproof film

Caution
Install the door waterproof film as flat as possible.

13. Install the subwoofer (see see “Chapter EL Electrical System - Electrical Components - Audio
System - Speakers, Replacement”)
14.Install the Interial Door guard assembly (see “Chapter BW Body - Inner and Outer Trims –
Interial Door Guard, Replacement”)

15. Install the rocking handle of glass regulator
a. Install the fixing circlip of glass regulator in the circlip
groove.

b. Install the glass regulator rocking handle to the glass
regulator shaft. Press the rocking handle inward. After it
gets to the position, there is a clear “click” sound.

c. Inspect the glass lifter handle for normal operation and
the connectors for reliable connection. Crank the handle to
inspect the glass operation for blockage.

BW-048
